The Universal Serial Bus (USB) port is perhaps the most commonly used and easily recognizable PC connectivity standard found on modern hardware. But as universal as the rectangular port and its various data transfer standards are, things have changed with the introduction of USB Type-C, which is increasingly being written as simply Type-C, USB-C, or USB C. In this blog, we’ll cover all the ins and outs here of USB-C ports, standards and protocols – consider this your ultimate guide to USB-C.

The Ultimate Guide to USB Type-C

The smaller, reversible, oval Type-C connector is positioned to become the go-to port for both commercial and industrial computers. This makes the dream of a legitimately universal connection standard, at least in part, a reality. But like any tech change, there’s plenty of room for confusion with USB-C. Clarity isn’t helped by the varying data transfer rates of USB 3.0, USB 3.1, USB 3.2, and now USB4 and USB4 version 2. So what exactly is USB Type-C? How is it better than its predecessors, Type-A, and Type-B? What is USB-C speed and what do all the numbers mean?

Watch our Tech Edge video on the topic, and keep reading to find out. Please note, we included some information in this blog on some updates to the standard that were made after this video was created.

What is USB-A?

The most common and familiar USB connector shape is USB-A, which is also written as USB A or USB Type-A. This rectangular port is currently used on the majority of computer equipment and peripherals. (However, that is quickly changing and USB Type-C is becoming more and more common.)

USB Type-A is also used on many other devices, including those that utilize its Mini-A and Micro-A variants (see feature image above). Gaining popularity in the mid 90’s, standard USB-A connectors have a distinct top and bottom. This requires them to be oriented properly in order to be plugged in.

What is USB-B?

The more square shaped USB Type-B is somewhat less common but is electrically identical to USB Type-A connectors. USB Type-B connectors are frequently used on printers, though they can also be found on some monitors and USB hubs. The Mini-B and Micro-B connectors, like their Type-A counterparts, are found on a wide range of electronics, from tablets and handheld GPS devices to cell phones.

What is USB-C?

Type-C refers to the physical shape of the newest USB connector. (Don’t confuse the USB-C connector with the USB 3.1, USB 3.2 or USB4 standards.)

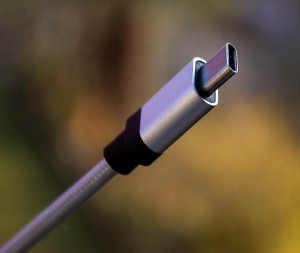

The USB Type-C connector is smaller than both Type-A and Type-B, oval-shaped, symmetrical, and reversible. That means there is no “wrong way” to plug it in. This eliminates one of the most common complaints about USB-A. This newest USB connector is intended to replace the other existing USB form factors and provide a future-proof, fully-featured option for hardware designers to standardize on.

USB-C ports are becoming more and more common on mobile devices and consumer hardware. On the other hand, the industrial PC (IPC) market is just beginning to integrate USB-C ports into the latest generation of commercial devices.

USB shape vs. USB performance

It’s important to make the distinction between a given USB port shape, or form factor (like Type-A or Type-C), and the data transfer rates and power delivery available over that port. The generational standards that dictate the performance of USB are expressed as a numerical value, like USB 2.0, USB 3.1, USB 3.2, USB4 and USB4 v2.

It all started back in 1996 with the introduction of USB 1.0 with a maximum data transfer rate of 12 Mbps (Megabits per second.) USB 2.0 maxed out at 480 Mbps. After those releases came versions with ever more complex numbers and capabilities.

That’s led to a lot of understandable questions from users including: What is the difference between USB 3.2 Gen 1 vs Gen 2 and USB 3.2 Gen 2×2? What about USB4 and USB4 Version 2? Are these still the naming conventions?

USB data performance language usage guidelines

To simplify some of the naming conventions, the USB Implementers Forum (USB-IF), the group that oversees USB standards development, has written guidelines for USB data performance language usage. Hopefully with this new document, consistent messaging and terminology on all USB content including product packaging, marketing materials, and advertising can be the norm. But that’s an evolving process that will take time. Keep reading for a breakdown of what the numbers in that document actually mean.

Breaking down USB data transfer rates

• USB 5 Gbps: The specification name is USB 3.2 Gen 1, which used to be called USB 3.0. It offers a transfer rate of 5 Gbps, which is about 10 times faster than the USB 2.0 standard.
• USB 10 Gbps: The specification name is USB 3.2 Gen 2 (released in July 2013) and it used to be called USB 3.1. It offers a transfer rate of 10 Gbps over the existing USB-A and USB-C connectors.
• USB 20 Gbps: The specification name is USB 3.2 Gen 2×2 (released in September 2017) and it is available only for USB Type-C connectors using two-lane operation. It offers 20 Gbps transfer speeds.
• USB 40 Gbps: The specification name is USB4 (released in March 2019). It leverages the Thunderbolt 3 protocol and offers transfer speeds of 40 Gbps. (Note that the correct specification name is USB4 as defined by the USB developers. It is sometimes identified as USB 4 with a space.)
• USB 80 Gbps: The specification name is USB4 Version 2.0 (released in October 2022). This updated specification extends USB4 speed and data protocol performance, enabling manufacturers to develop products that can deliver up to 80 Gbps transfer speeds, but can go even higher when configured asymmetrically: up to 120 Gbps in one direction and 40 Gbps in the opposite direction. This standard is also fully compatible with DisplayPort 2.1.

Watch our Tech Edge video on USB Generations. In it, we break down USB 3.1 vs. 3.2 and USB 3.2 Gen 1 vs. Gen 2.

USB-C in the EU

The USB-C charging port has been mandated in the EU starting in 2024. This new law is a part of a broader EU effort to make products more sustainable, to reduce electronic waste, and make consumers’ lives easier. The first stage applies to small electronics like cell phones, digital cameras, tablets, and more. Medium electronics, such as laptops, have until 2026 to implement USB-C for charging.

USB-C and Apple™

To comply with the EU regulations mentioned above, Apple announced in September, 2023 that the iPhone 15 will now rely on a USB-C port for charging. This replaces their proprietary Lightning port that was the method for charging iPhones for 11 years. This means that all Apple devices like iPhones, iPads, and Macs will share the same charger and cable with just about every other modern electronic device.

Apple noted in their press release that their iPhone 15 Pro models would leverage the USB 3 standard to get up to 10 gigabits per second transfer speed. However, that is only available with the optional USB 3 cable. You won’t get that speed out of the box because Apple is shipping a USB 2.0 cable with USB-C connectors. Which, as noted above, tops out at 480 Mbps transfer speed.

USB-A – visual differences

Transfer speed differences are very important to understand when you’re connecting devices via USB. Since there is such a large jump in speed capabilities between generation 2 and generation 3, some manufacturers distinguish faster USB-A ports with blue inserts. That is particularly true when they appear on the same device as on the HX300 Series.

Alternatively, the USB SuperSpeed logo or its “SS” abbreviation may be used to identify USB 3.2 ports, particularly when all USB ports on a given device are USB 3.2 as on the CL100.

You should note, however, that while the data transfer rates of USB4 and USB4 version 2 and even USB 3.2 Gen 2 and Gen 2×2 are impressive, many devices aren’t yet capable of reading or writing at those speeds. Actual speeds will be based on the host and destination devices (resorting to the lowest speed) as well as the capabilities of the USB cable being used.

USB cable compatibility & capabilities

One final variable to consider when trying to utilize USB 3.2 or USB4 transfer rates and power output to their fullest potential is the USB cable. All three parts of the equation have to be compatible with the desired transfer and/or charging rate. That includes the source (e.g. your computer), the USB cable, and the destination device (e.g. a hard drive or other system). When using products with different USB capabilities, the data transfer speed and charging capabilities will top out at the highest capability of the lowest performing component of the three.

Cables with more wires offer more features

The additional wires in USB 3.2 cables enable ultra fast data transfer as well as the dramatic increase in power output capabilities. They also provide additional features. For example, USB 3.2 connections can also offer DisplayPort capabilities, provided the hardware and cable are compatible. This makes 4k video output, data transfer, power output, and even power input possible over a single cable.

The power capabilities of USB

The power capabilities of USB are defined in yet another a separate specification – the USB Power Delivery (USB-PD) specification. This is completely separate from the USB generation and port type.

At the time of writing, USB-PD is on version 3.1 and can provide up to 240W of power over compatible USB-C cables (more on that below) and up to 100 W with USB-A. Technically, USB-PD version 3.1 can be applied to USB 2.0, USB 3.X and USB4 ports.

Here’s a rundown of the power features for USB-C:

• Increased power delivery up to 240W.
  • Now a full-featured USB C cable can power desktop computers, laptops, docking stations, gaming PCs and more.
• The product with the power (host or peripheral) can provide the power. (Power direction is not fixed). For example:
  • A monitor plugged into the wall can power, or charge a laptop while still displaying.
  • USB power bricks or chargers can supply power through any of a laptop’s USB C ports.

This updated power delivery specification is a major leap forward from earlier versions and has huge potential to unify data and power delivery standards across a wide variety of electronic devices.

USB capabilities – convenient for both you and bad actors

These power capabilities have created a huge consumer market for small electronic devices that get their power through a USB port. For charging convenience, USB-A and USB-C ports are popping up in more and more places – dedicated public charging stations, airplane seats, cars, walls – just about anywhere possible.

However, no matter how convenient, you should exercise a little caution. In April 2023, the Denver, Colorado office of the FBI tweeted out a warning to avoid using public USB ports. The name for this type of cyber-theft tactic is “juice jacking”.

“Avoid using free charging stations in airports, hotels or shopping centers. Bad actors have figured out ways to use public USB ports to introduce malware and monitoring software onto devices. Carry your own charger and USB cord and use an electrical outlet instead.”

@FBIDenver

Juice jacking

As mentioned, one of the great features of USB is that you can use it to power your device and transfer data in both directions through a single connection and cable. However, that same ability to transfer both power and bi-directional data is a liability with juice jacking.

When you plug your phone into your computer through a USB port, your phone appears as an external device to your computer. Consequently, you are enabled to share files back and forth. The same thing can happen when you plug your cell phone into a public USB port.

That connected device could enable someone you don’t know to potentially access your personal information. Bad actors might now have access to all of your private data. In addition, they have the ability to transfer files (like malware) to your phone.

How can you prevent juice jacking?

According to the FCC, here are some additional tips on how you can guard yourself against juice jacking:

• Carry your own charging cable and adapter for use with an AC power outlet
• Carry an external battery
• If a prompt appears after connecting to a USB port that asks you to select “share data”, “trust this computer”,  or “charge only”, always select “charge only”
• Invest in additional technology from a trusted supplier such as a charging-only cable (which has the data wires removed) or a data blocker which is sometimes called a USB condom.

What is a USB data blocker?

A USB data blocker is an adapter that looks like a sleeve that you put your USB connector into. The data blocker device (or USB condom) physically blocks the data wire connections. This enables your device to continue to receive power, but not transfer data.

USB and industrial computers

While USB Type-C and USB 3.2 are sometimes used interchangeably, they are not one and the same. Both USB Type-A and USB Type-C connectors are used to facilitate 5 Gbps and 10 Gbps (USB 3.2 Gen 1 and Gen 2) connections, and USB Type-C is also used to facilitate the 20 Gbps (USB 3.2 Gen 2×2), 40 Gbps (USB4), and 80 Gbps (USB4 V2) connections.

We expect that the majority of industrial computers will continue to feature both USB Type-A and USB Type-C connectors, as well as support for multiple data transfer speeds and power handling, for the foreseeable future. It rests on manufacturers to appropriately label USB ports going forward to help avoid confusion.

Conclusion: What you need to know about USB-C and USB 3.1, USB 3.2, USB4, and USB4 V2

The launch of the USB-C connector, and the evolution of USB data handling and charging standards offer some very exciting possibilities for today’s computing devices. However, they’ve also created their fair share of confusion. Here are the key takeaways:

• USB-C is NOT the same thing as USB 3.2 or USB4
  • USB-C ONLY describes the physical connector
  • USB 3.2 and USB4 ONLY describe the capabilities of the port

• A Type-C connector does not automatically indicate that a USB port will support 10 GBps or faster data transfer speeds.

• The term “USB 3.1” or “USB 3.2” may be used to describe ports that support either 5 Gbps data transfer (USB 3.2 Gen 1) or 10 Gbps data transfer (USB 3.2 Gen 2)

• You must use the appropriate cables and compatible hardware in order to maximize the data transfer speeds, power delivery, and additional features (like 4k video)

• USB 3.2 and USB4 are fully backwards compatible with previous versions, but USB-C is not strictly backwards compatible due to the new port form factor, although adapters are readily available

We completely agree that this is confusing! If you still have questions, or would like to chat with one of our Solution Specialists about an upcoming project involving any of the USB standards or connectors covered here, don’t hesitate to reach out.

We originally posted this blog on July 21st, 2020. We updated for content on September 13, 2023.
